Aluminium Windows & Doors
Window, door and façade systems engineered for Australian projects
Thermally broken windows, sliding and lift-and-slide doors, curtain walls and sunrooms, made in our manufacturing partner’s automated factories and supplied direct to builders, developers and architects by Crystal Core.
Factory-direct, supported in Australia
One partner from shop drawings to site delivery
Crystal Core is the Australian partner of an established Chinese façade and window manufacturer, recognised as a Top 100 China Building Decoration Enterprise for four consecutive years. We give Australian builders and developers direct access to its engineering team, product range and production capacity, with a local contact who manages quotes, samples, documentation and delivery.
- Class A design and Class 1 construction qualifications
- In-house R&D in thermally broken, energy-saving systems
- Australian system series designed to AS 2047
- Modular windows delivered as factory-glazed units to reduce site labour
- Long-term supply partnerships with major state-owned developers
Australian System Windows & Doors
Built for Australian conditions and standards
Our core range for residential and multi-residential work: awning, sliding and casement windows, sliding and swing doors, in thermally broken and standard versions.
Hidden-Frame Panoramic Sliding Door
The frame sits fully concealed in the wall and floor, leaving an uninterrupted view through large glass panels. High bending resistance supports oversized double-glazed units.
C101 SERIES
Swing Door — technical data
| Maximum height | 2,800 mm |
|---|---|
| Maximum panel width | 1,200 mm |
| Maximum panel weight | 150 kg |
| Glazing | Double glazed, up to 22 mm IGU |
| Frame depth | 114 mm |
| Bottom frame height | 49 mm |
| Extrusions | 6063-T5, 2.0 mm wall |
| Wind pressure | 600–1,400 Pa |
| Water resistance (design) | 200 Pa |
| Sound insulation | 36 dB |
| Heat transfer (U-value) | 3.7–6.2 W/m²K |
| SHGC range | 0.32–0.57 |
| Standard | Designed to AS 2047 |
Full Australian System series
- 108B Hidden-Sash WindowConcealed sash for a clean, minimal sightline
- Integrated Bridge Window with ScreenThermally broken frame with built-in insect screen
- T101 Thermally Broken SeriesSupplied with sub-frame for faster installation
- Awning Window SystemTop-hung, with concealed drainage
- C101 Awning WindowHigh-purity primary aluminium profiles
- C101 Sliding WindowNon-thermal option for cost-sensitive projects
- C101 Thermally Broken Sliding WindowFlush stainless-steel sill for easy cleaning
- Super Airtight Sliding DoorMulti-point locking for weather and security
- Thermally Broken Sliding Door SystemHigh and low sill options with hidden drainage
- Heavy-Duty Sliding Door SystemLoad-bearing pulleys for large, smooth panels
- C101 Three-Track Sliding DoorStainless-steel rail, wear-resistant rollers
- C101 Thermally Broken Three-Track DoorThree-track layout with thermal break
- C101 Swing DoorAluminium hinges, double-glazed panels up to 150 kg
- Hidden-Frame Panoramic Sliding DoorFrame concealed in the opening for floor-to-ceiling glass
Premium System Windows & Doors
Premium systems for high-end homes and apartments
Slim sightlines, thermal breaks and large-format glass for architect-designed projects.
PK88T
Casement Window with Integrated Sash
Integrated sash and fly screen in one slim frame.
G110BG
Thermally Broken Casement Window
Integrated sash with a deep thermal break for cooler summers and warmer winters.
JGT128B
6-Track Ultra-Slim Thermal Sliding Window
Six tracks for wide openings with minimal interlock sightlines.
JGT120A
Thermally Broken Lift & Slide Door
Lifts off its seals to glide large, heavy panels with little effort.
TL190
3-Track Heavy-Duty Ultra-Slim Sliding Door
Heavy-duty rollers and slim frames for large living-room openings.
TM110Y
Ultra-Slim 3-Track Sliding Door
Narrow profiles for interior partitions and wardrobes.
TM110Y
Ultra-Slim Flush Door with Framed Edges
Flush interior door with a slim aluminium edge.
Thermally Broken Retro-Style Window
Decorative glazing bars with modern thermal performance.
Two-Stage Smart Lift Window
Thermally broken window with a two-stage lift opening.
Curtain Wall Systems
Façade systems for commercial and high-rise buildings
Design, fabrication and supply of complete building envelopes, with experience on towers above 180 m.
Unitised Curtain Wall
Factory-assembled panels for fast, weather-tight high-rise envelopes.
Point-Supported Curtain Wall
Frameless glass held by spider fittings for lobbies and atria.
Metal Curtain Wall
Aluminium panel façades in PVDF or powder-coat finishes.
Natural Stone Curtain Wall
Granite or stone cladding on a galvanised steel sub-frame.
Glass Curtain Wall
Low-E insulated glazing on aluminium framing.
Sunroom Series
Aluminium and glass sunrooms
Five roof forms in thermally broken aluminium, for living extensions, pool houses and outdoor entertaining.
Flat-Sloped Roof Sunroom
A gentle pitch for drainage with a low, modern profile.
Diamond-Cut Roof Sunroom
Faceted glass roof for pavilions and outdoor dining.
Flat Roof Sunroom
Clean box form for courtyards and garden rooms.
Gable Roof Sunroom
Classic pitched roof with a tall, open interior.
Radius Glass Roof Sunroom
Curved glass roof for a continuous, open sky view.
Manufacturing
Three production bases, one quality system
Two headquarters and three factories in Fujian, Guangdong and Guangxi, with automated CNC lines for cutting, machining, corner assembly and sealing.
Fujian
Quanzhou, Fujian Province
| Facility area | 40,000 m² |
|---|---|
| Doors & windows / yr | 1,000,000 m² |
| Curtain wall / yr | 350,000 m² |
Guangdong
Jiangmen, Guangdong Province
| Facility area | 10,000 m² |
|---|---|
| Doors & windows / yr | 200,000 m² |
| Curtain wall / yr | 100,000 m² |
Guangxi
Guangxi Zhuang Autonomous Region
| Facility area | 5,000 m² |
|---|---|
| Doors & windows / yr | 100,000 m² |
| Curtain wall / yr | 50,000 m² |
Automated production workshop
3-Axis CNC Machining Centre
4-Axis CNC Machining Centre
Automatic Material Cutting
Automatic Sealant Dispensing

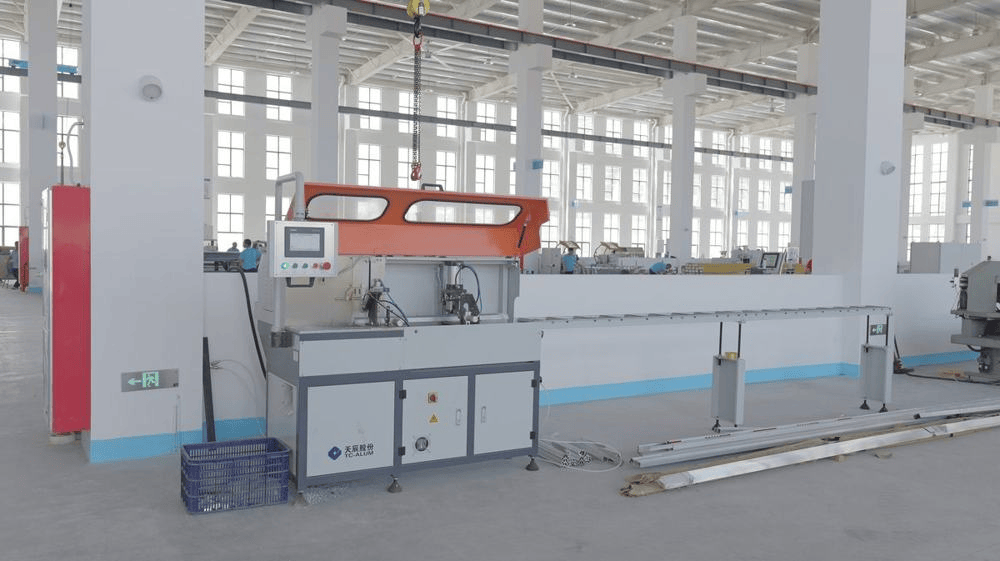

Automatic Corner Cleat Cutting

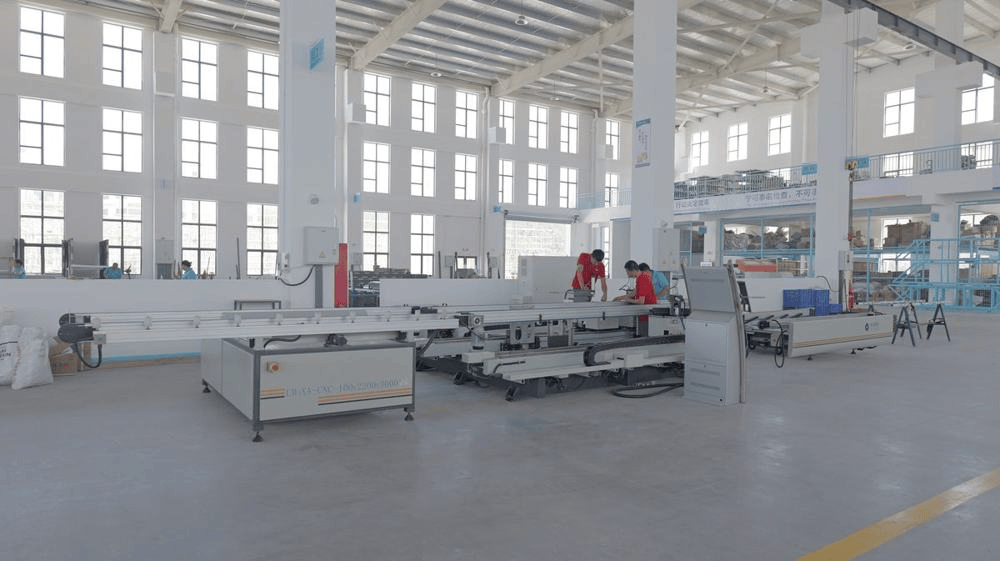

Automatic Corner Assembly
CNC Copy Milling
CNC Face Milling
Quality Testing
Every system is tested before it ships
On-site test centres check air tightness, water penetration and structural performance, and each order is commissioned and inspected before packing.

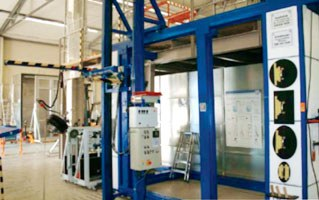

Performance Testing Centre
Air permeability, water tightness and wind-load resistance testing of complete window and door samples.
Water Spray Testing Centre
Full-size units are sprayed under pressure to confirm seals and drainage before production runs.
Commissioning & QC Centre
Hardware, operation and finish are checked and signed off before units are packed for shipping.
For builders, developers and architects
Send us your drawings for a quote
Share your window and door schedule or architectural drawings and we will come back with system recommendations, pricing and lead times. Product brochures and samples are available on request.
